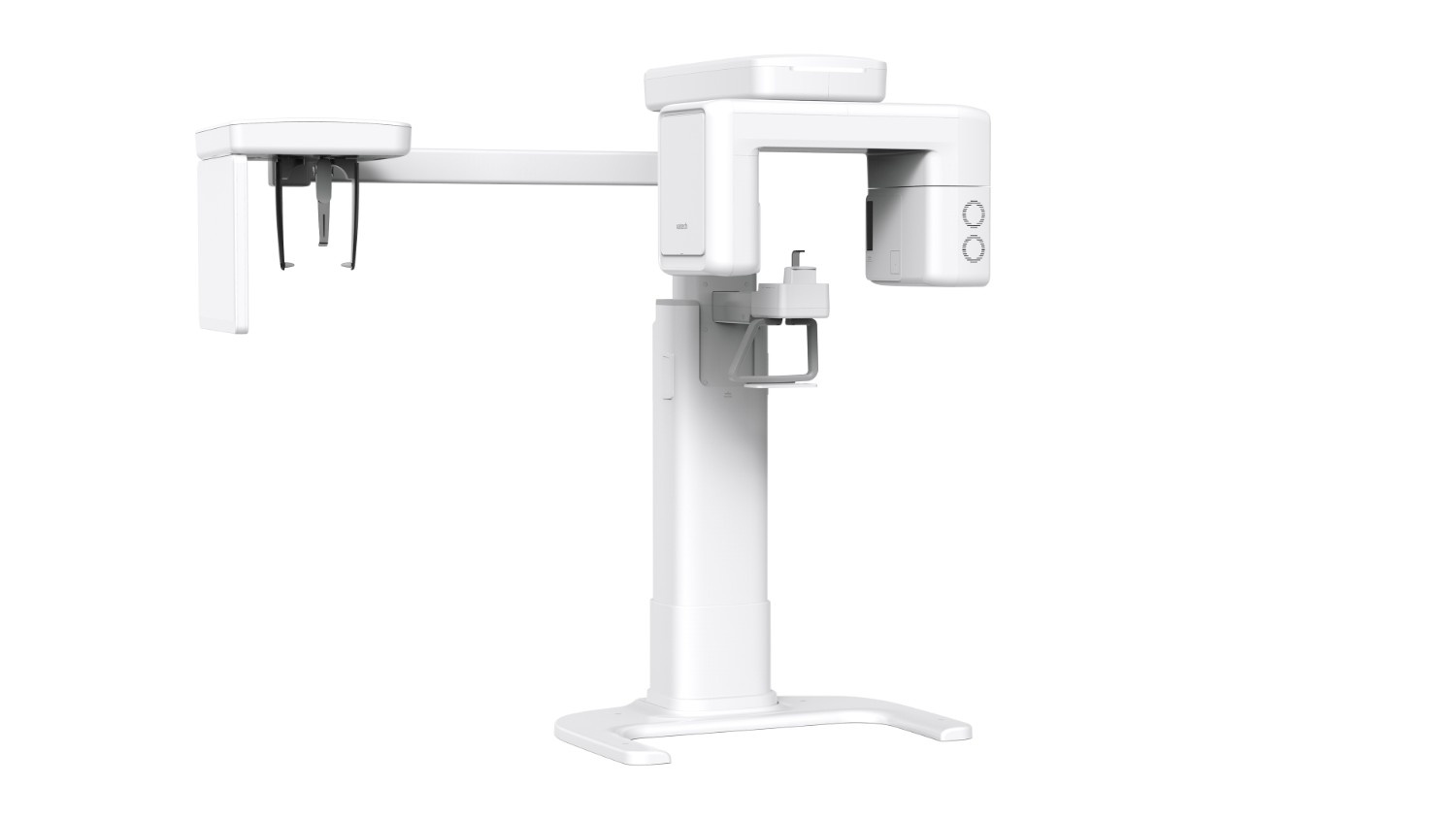

VATECH A9 CBCT
Description :
- Function CT + Pano + Ceph
- Focal Spot Size 0.5 mm (IEC 60336)
- CT FOV Size 8x8 cm (Anatomical 9.3x8 cm)
- Voxel Size 0.2mm / 0.3mm
- Scan Time CT18 sec
- Pano 11.9 sec / 14.1 sec
- Gray Scale 14 bit
- Tube Voltage 60 - 99KV
- Current 4 - 10mA
- Weight Without cpeh unit 108.3kg / 238.76 lbs. (without base)
- 160.5kg / 353.84 lbs. (with base)
- With cpeh unit 134.3kg / 296.08 lbs. (without base)
- 186.5kg / 411.16 lbs. (with base)
Features :
- THE ADVANCED IMAGING SOLUTION FOR ACCURATE DENTAL DIAGNOSIS
- INTEGRAL FOV FOR 3D IMAGE
- MINIMIZE MOTION ARTIFACTS WITH RAPID CEPH TECHNOLOGY

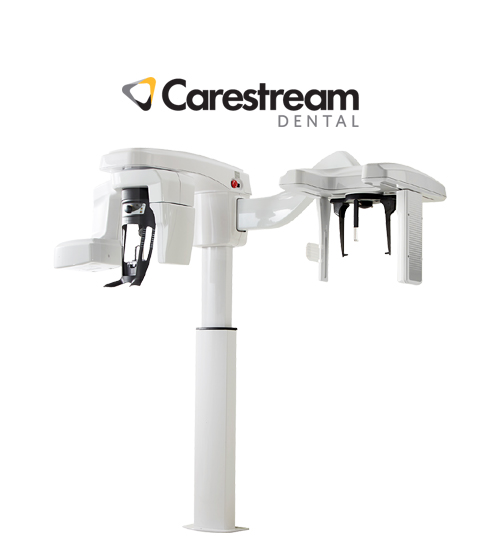

CARESTREAM CS 8200 CBCT Scanner
Description :
- X-Ray Generator
- Tube voltage 60-90 kV
- Tube current 2-15 mA
- Frequency 140 kHz
- Minimum required space Without ceph arm: 1200 (L) × 1400 (D) × 2400 (H) mm
- With ceph arm: 2000 (L) × 1400 (D) × 2400 (H) mm
- Weight Without ceph arm: 95 kg (210 lb.)
- With ceph arm: 125 kg (276 lb.) 3D Modality
- Field Of View diameter × height (cm) 4 × 4 – 5 × 5 – 5 × 8 – 8 × 5 – 8 × 91 (in Ontario 8 × 8) 10 × 51 – 10 × 101 – 12 × 51 – 12 × 101
- Voxel size (μm) 75 μm minimum
- Exposure time 3 to 15 s for FOV < 10 cm (Ø) / to 20 s (2 × 10 s) for FOV ≥ 10 cm (Ø)
- Panoramic Modality
- Magnification 1.2 Radiological exam options Full panoramic
- segmented panoramic (including bitewing segmented panoramic) maxillary sinus LA TMJ × 2 LA TMJ × 4
- Exposure time 2 to 14 seconds
- Cephalometric Modality Magnification 1.13
- Radiological exams Lateral frontal AP or PA oblique submento-vertex carpus
- (optional) Exposure time 2.9 to 11 seconds.
Features :
- Versatile 2D/3D system ideal for offering more in-office services
- Broadest range of fields of view in its category
- Outstanding 2D/3D images thanks to the latest premium technology
- High-resolution 3D images with limited artifacts and noise
- Smart workflow and intuitive user interface streamline image
- acquisition
- State-of-the-art 2D/3D software for easy image review
- Exclusive CS UpStream premium support service available for further
- peace of mind
